Introduction

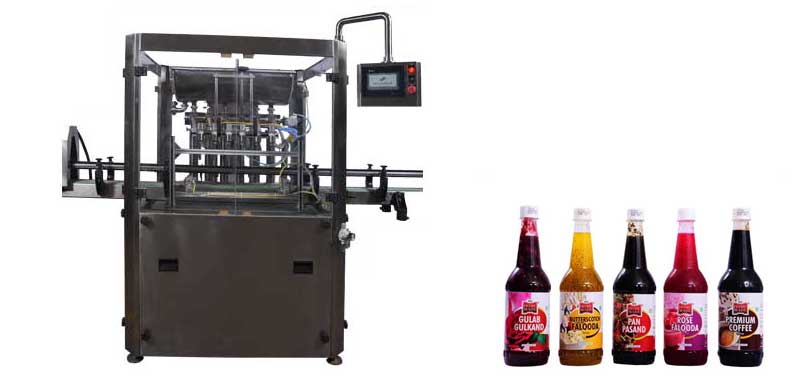

The NIHIRA NFE-L Series of machine is for filling of all types of liquid foods and pharmaceutical /chemical. The machine is suitable for filling in Glass/ PET/ PP Bottles and Jars used in packaging of foods.
Features
Easy and fast changeover for different size of bottles
Machine is constructed in SS 304
Mitsubishi /Schneider /Siemens/Delta HMI and PLC control system
No bottle no filling safety device
Volumetric Filling by piston pump driven by Pneumatic or Servo motor
In Servo Driven Filling volume can be adjusted with Touch Screen
Diving type nozzle with drip proof construction
Options
Double Jacketed hopper for hot filling liquids
Hopper Agitator with variable speed drive
Safety Guards
Additional Conveyor
Liquid Feed Pump & Level sensor
Applications
Fruit syrups, fruit crushes, fruit jams, tomato ketchup, all type of chilly sauces, edible oil, mayonnaise, peanut butter, chocolate toppings, fruit fillings, dairy products & chemicals.
Specifications
| Model |
NFE-2LMP |
NFE-2LMS |
NFE-4LAS |
NFE-6LAS |
| Type(Filler) |
Manual Pneumatic |
Manual Servo |
Auto Inline Servo |
Auto Inline Servo |
| Filling/Capping Head |
2 |
2 |
4 |
6 |
| Filling Volume |
100-1000ml , 50-200ml |
100-1000ml , 50-200ml |
50-200ml , 100-1000ml , 500-3000ml |
50-200ml , 100-1000ml , 500-3000ml |
| Standard Capacity |
500-1000 Pcs/hr |
500-1000 Pcs/hr |
1200-2500 Pcs/hr |
2000-3600 Pcs/hr |
| Total Power |
0.25KW, 220V, 50Hz |
1.25KW, 220V, 50Hz |
2.6KW, 415V, 50HHz |
3.6KW, 415V, 50Hz |
| Size(LxWxH) in mm |
1000x900x2000 |
1000x900x2000 |
2200x1350x2000 |
2200x1350x2000 |
| Air |
12 cfm @ 7 bar |
7 cfm @ 7 bar |
10 cfm @ 7 bar |
12 cfm @ 7 bar |
