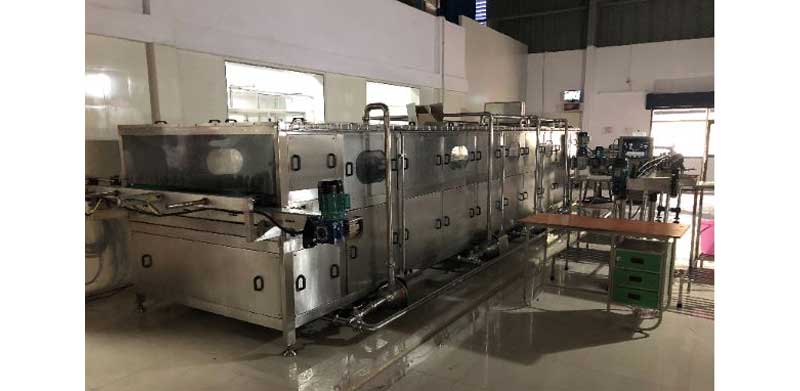

Machine Function
This machine can reduce the temperature of hot filling drinks to 36 -40, or increase the temperature of cold filling carbonic acid drinks to 36-40. It is used in PE bottles hot juice drinks and carbonic acid drinks hot filling production line. Productivity: 5000-12000 bottles/hour, spray time: about 15-20 minutes.
Applications
Juice PET bottles, glass bottles, cups & other wide variety of containers
Specifications
| Model |
NFE-06CMT |
NFE-08CMT |
NFE-10CMT |
| Capacity Base on 500 ml bottle (BPM) |
5000 |
7500 |
9000 |
| Speed of conveyor Belt, mm/min |
250-300 |
300-400 |
400-500 |
| Water re-circulation (lit/hr) |
15000 |
25000 |
32000 |
| Steam Pressure (warmer only) bar |
3.5 |
3.5 |
3.5 |
| Machine Dimension (LxWxH) |
6000x1350x1850 |
8000x1750x1850 |
10000x1750x1850 |
