Jelly Depositor

Introduction :

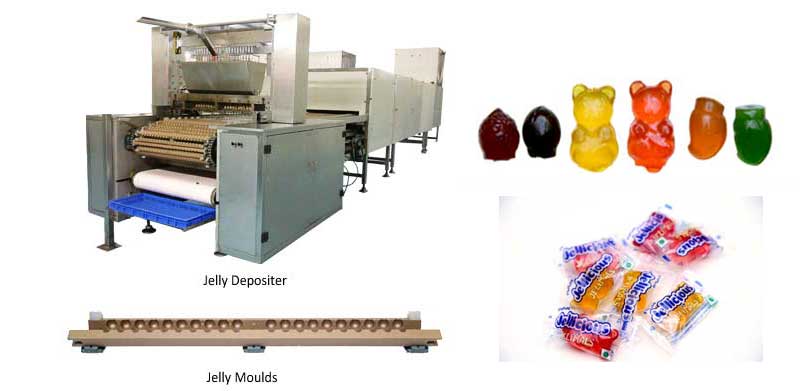

We at Nihira Food Pioneer in manufacturing of JELLY DEPOSITOR with several years Experience in PECTIN Jelly Depositing. We used only SERVO Driven Depositor with latest type of Moulds Like 2D or 3D. These are latest developed mould with tool less fitting on the chain Bracket. The depositor mainly consists of Depositing head, cooling tunnel and Demoulding. All these operations are control with electric control panel with 7.5" HMI. This Depositor can produce high quality of jelly with single colour, double colour, and two layers with 2D and 3D moulds. The depositor has several features over traditional depositor

---

Features :

  Less than 1% wastage
  Special Engineering plastic chain guide thereby chain can last longer
  Machine is heavy duty and maintenance free
  Refrigeration system is accommodated within cooling
  Tunnel so it is very compact design
  Easy to adjust from the HMI
  Easy demoulding
  Less manpower is needed

---

Model	NFE 250	NFE 500
Capacity (4 G Candy)	250 KG/h	500 Kg/h
Power Consumption (Depositor)	17 KW	19 KW
Compressed Air Consumption	12 CFM	17 CFM
Compressed Air Pressure	8 BAR	8 BAR
Water Consumption	400 L/h	400 L/h
Size (L*W*H)	13500*2000*2200 MM	13500*2500*2200M
